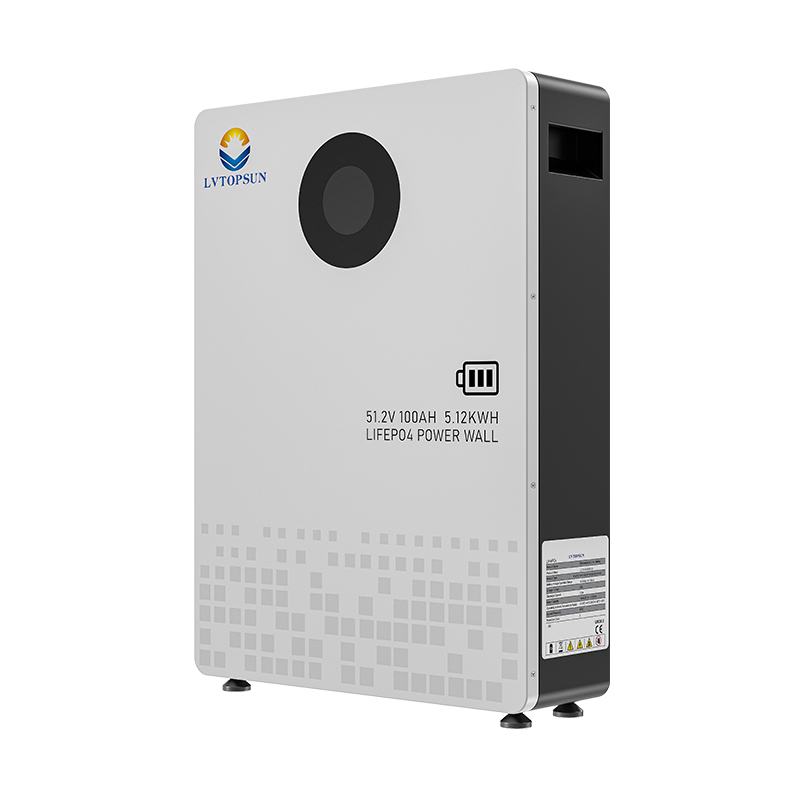

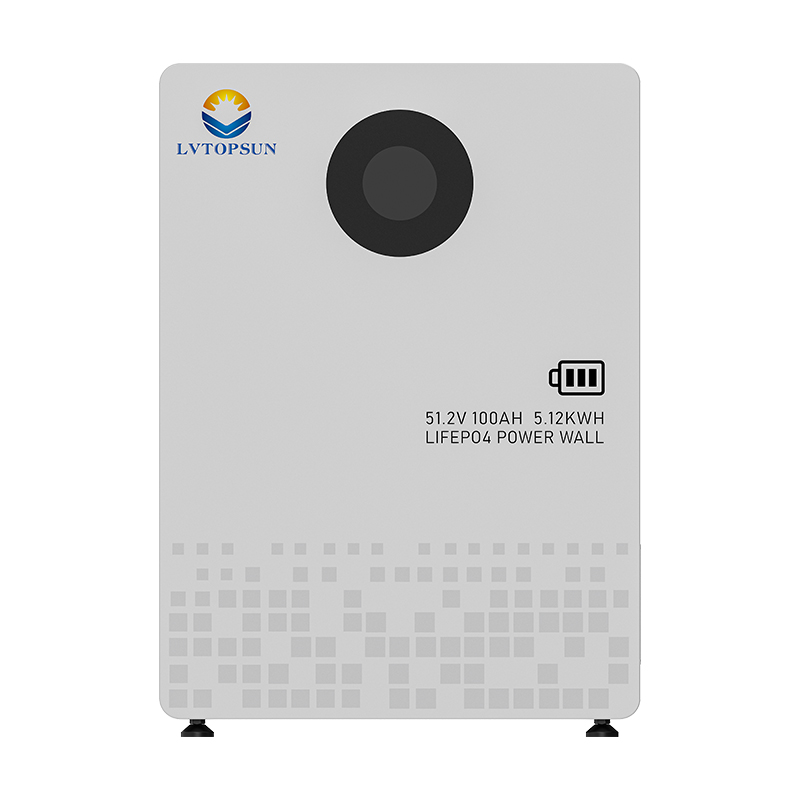

LVTS-512100-G3 Battery Summary

Core Technical Specifications

• Capacity & Voltage: Operates at a nominal voltage of 51.2V with a 100Ah capacity, delivering a total of 5.12kWh of energy.

• Power Output: Supports a 50A standard charge current (2560W) and a 100A maximum discharge current (5120W).

• Battery Chemistry: Constructed with safe, cobalt-free Lithium Iron Phosphate (LiFePO4) cells, offering excellent thermal stability and long-lasting cycle life.

Key Features & Capabilities

• High Usable Energy: Features a deep 90% Depth of Discharge (DoD) paired with efficient full-time 1C discharge capability.

• Scalability: Multiple battery units can be linked together to seamlessly expand storage capacity from the baseline 5.12kWh up to a maximum of 76.8kWh.

• Flexible Installation: Designed to adapt to various home layouts with configurations supported for either wall mounting or floor stand placement.

• Interface & Control: Equipped with an integrated color touchscreen display allowing users to monitor real-time battery status, health parameters, and energy consumption.

• Smart Connectivity: Incorporates CAN, RS485, and RS232 communication interfaces, ensuring broad compatibility with mainstream hybrid inverters and home energy management platforms.

• Advanced Safety: Features comprehensive built-in protection against overcharging, over-discharging, short circuits, and extreme temperatures.

Official Documentation: Click to download product Parameter
