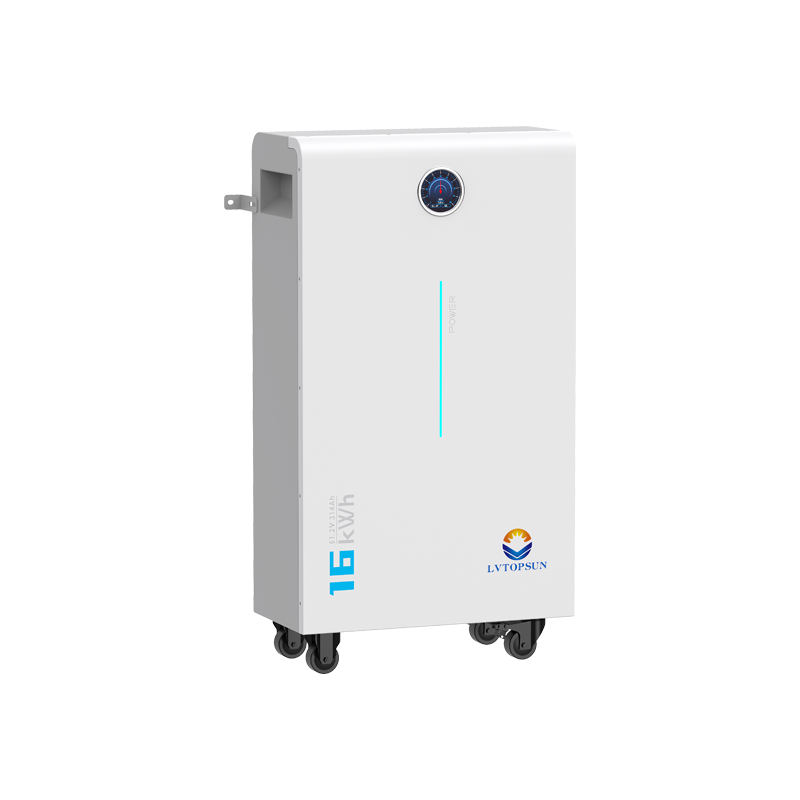

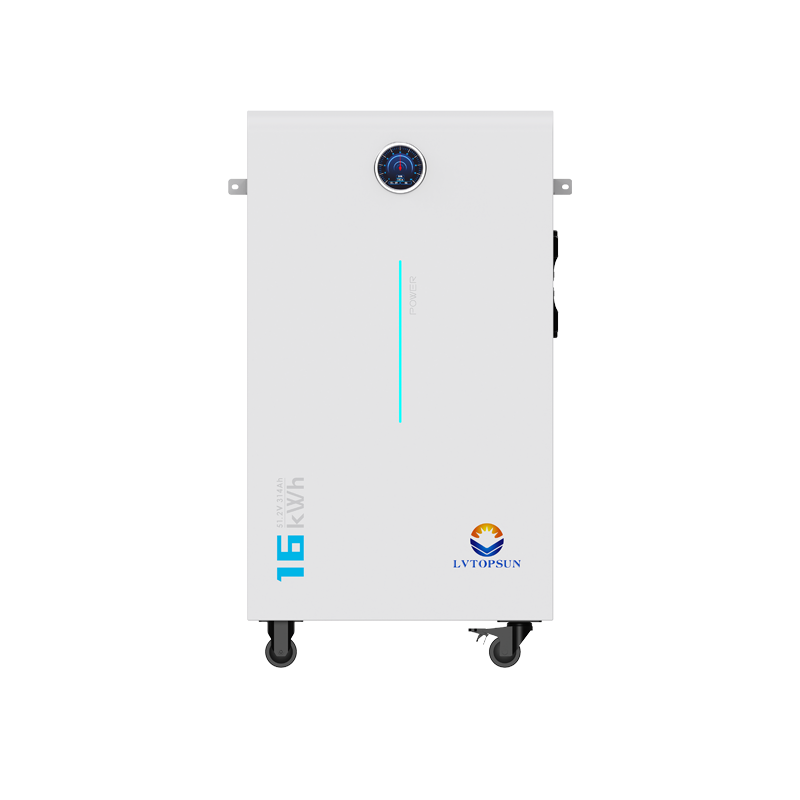

LVTS-512314-G4 Residential Energy Storage Battery

Key Features & Performance

• High Energy Capacity: Features a single cell with a 314Ah capacity and a 90% depth of discharge, ensuring more usable energy.

• Electrical Specs: Operates at a nominal voltage of 51.2Vdc with an overall energy capacity of 16.07kWh per battery. It supports a 150A charging current (7680W) and a 200A discharging current (10240W).

• Massive Scalability: Highly expandable architecture allows up to 63 batteries to be connected in parallel, scaling system capacity from 16.07kWh up to 1,012.83kWh.

Design & Installation

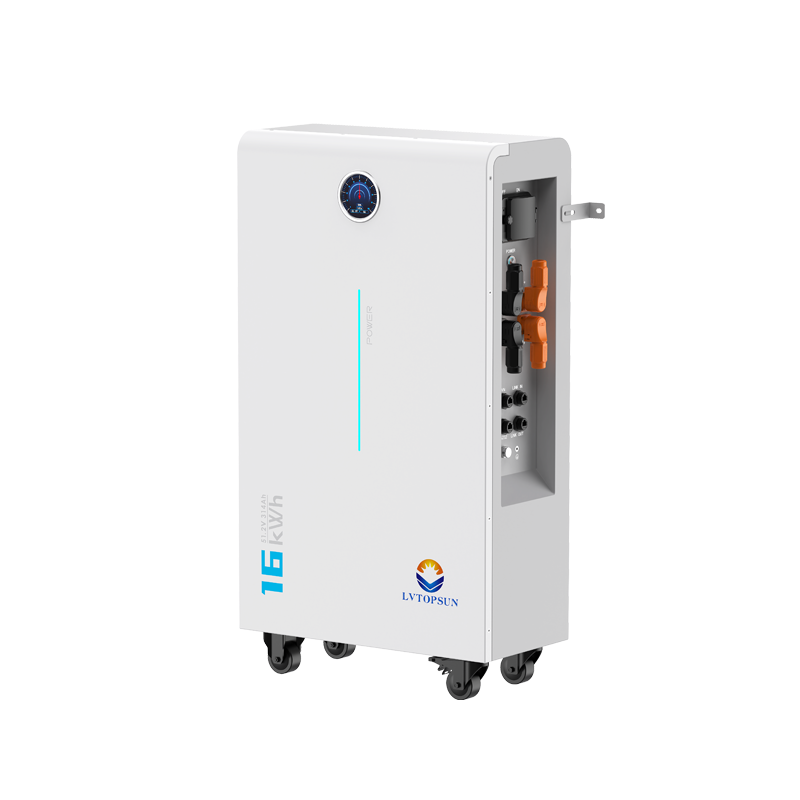

• Flexible Mobility: Built with a quick-plug, floor-standing design on wheels, making it easy to relocate and install without needing to remove screws.

• Weatherproof & Durable: Features an IP65 waterproof and dustproof rating, rendering it suitable for outdoor deployment without requiring extra protective structures.

Smart Functions & Safety

• Intelligent Control: Equipped with a touchscreen display for real-time status tracking and supports WiFi remote upgrades to monitor health, temperature, and power through a dedicated app.

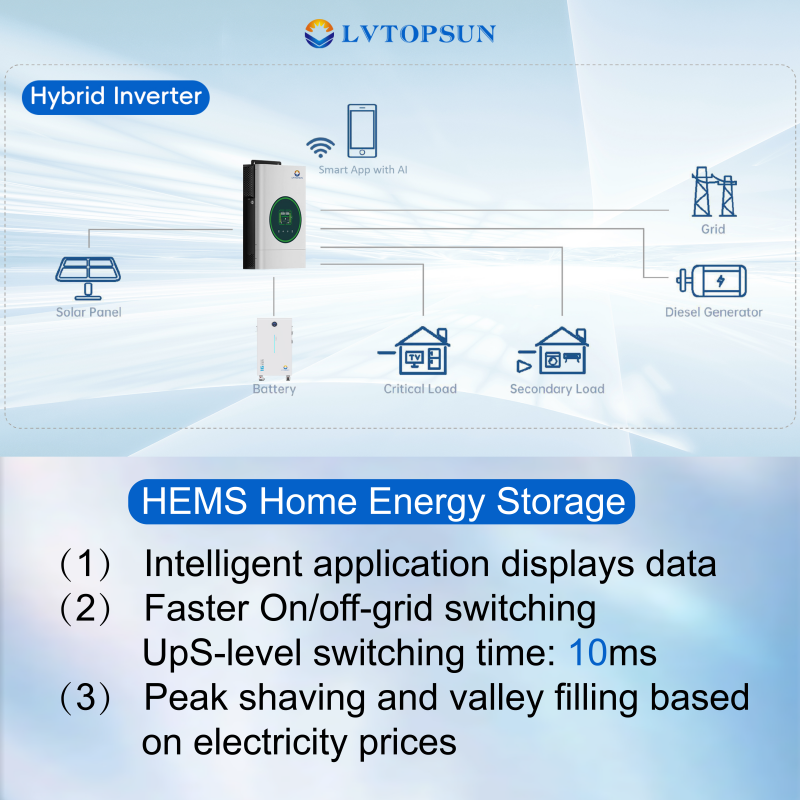

• Home Energy Optimization: Integrates into Home Energy Storage Systems (HESS) for peak shaving and valley filling (taking advantage of low-cost off-peak electricity). It features an uninterruptible power supply (UPS) level grid/off-grid switching time of 10ms.

• Comprehensive Protection: Built-in safety mechanisms safeguard the system against overcharging, overdischarging, short circuits, and thermal stress.
