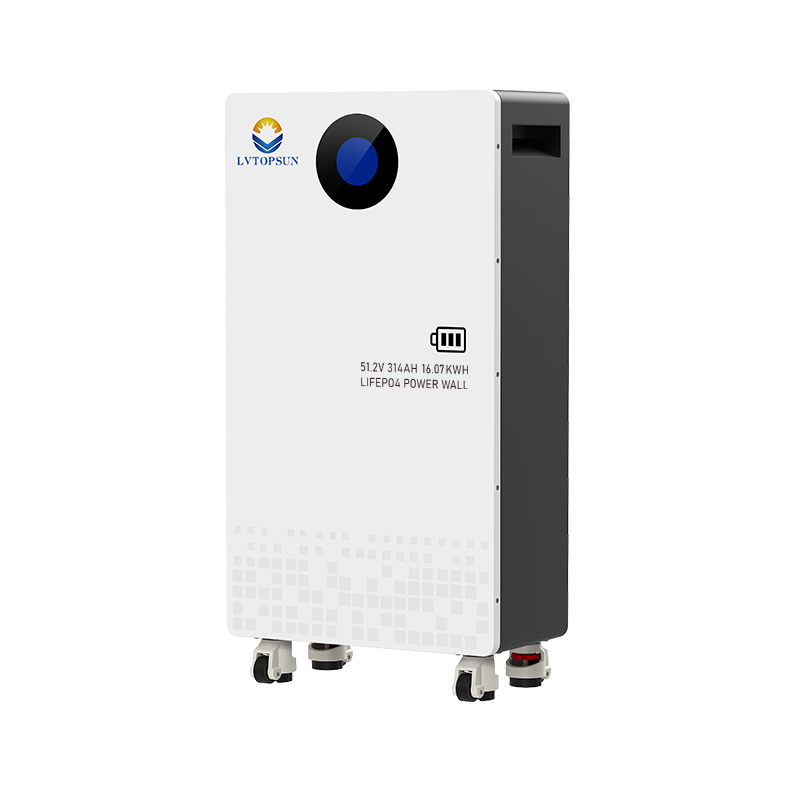

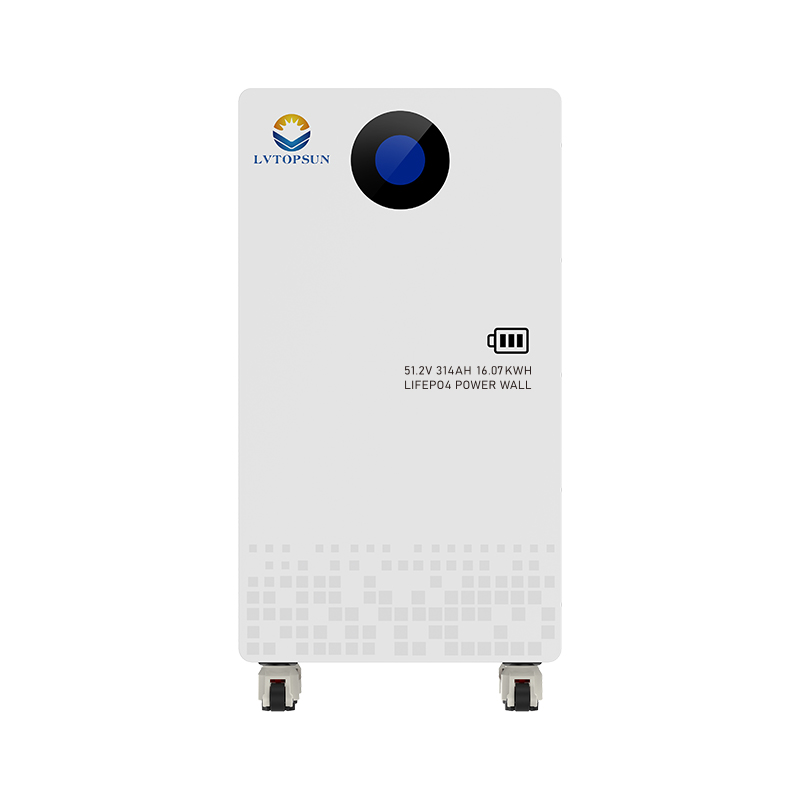

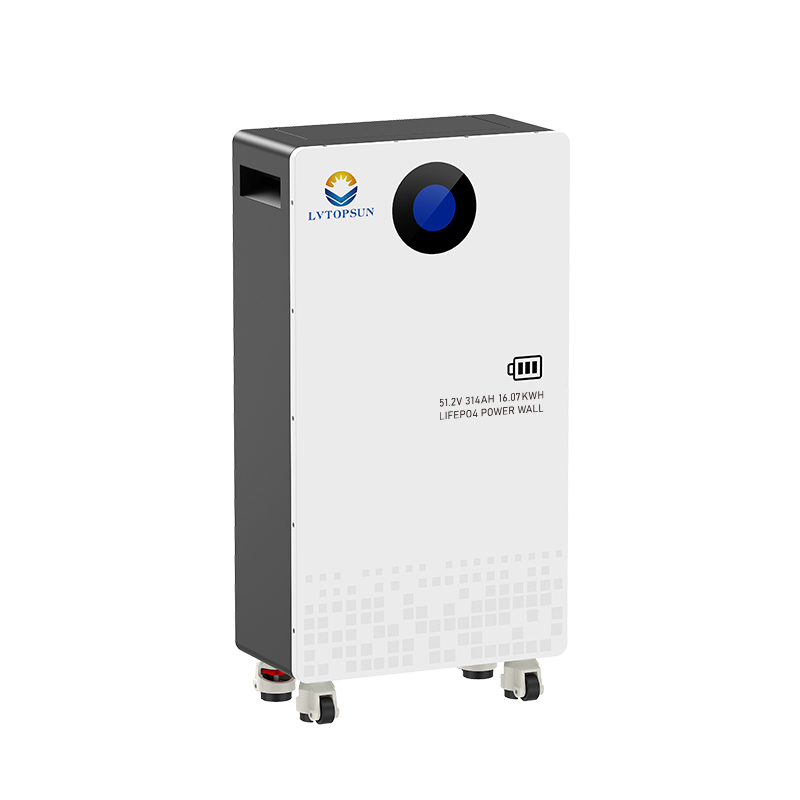

Product Summary: LVTS-512314-G3 Lithium-Ion Battery

Core Performance & Capacity

• High Usable Energy: Supports an efficient 90% depth of discharge.

• Large Capacity: Utilizes a single 314Ah cell, delivering a nominal energy of 16076.8 Wh (approx. 16.08 kWh) at a nominal voltage of 51.2 Vdc.

• Extensive Scalability: Up to 63 batteries can be connected in parallel, allowing the system to scale from 16.07 kWh up to 1012.83 kWh for both residential and commercial applications.

Design & Installation

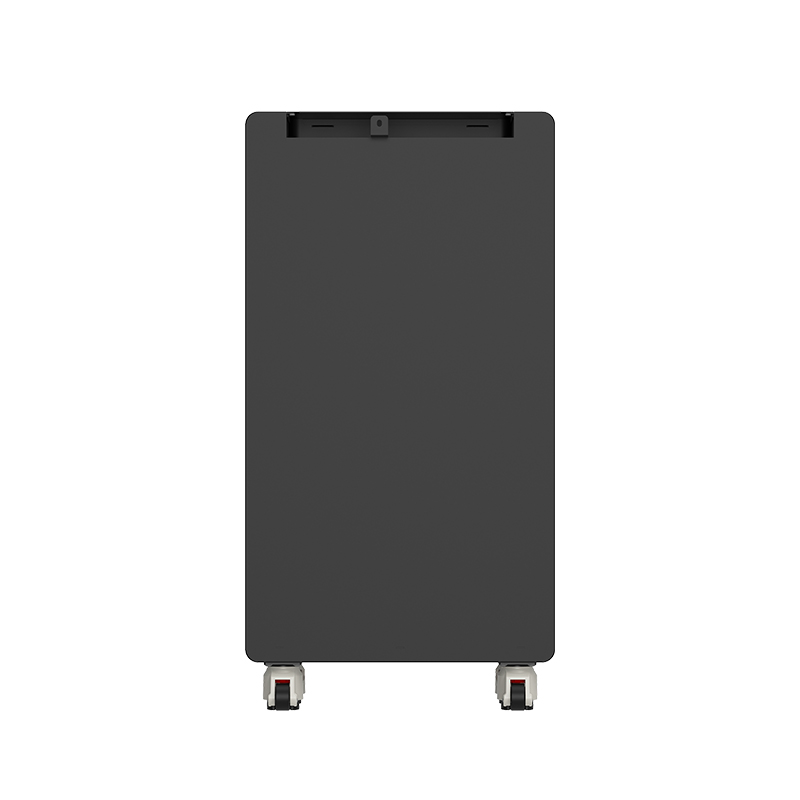

• Mobility: Features an innovative floor-stand design equipped with durable wheels, making it easy to move, reposition, and maintain.

• Smart Interface: Includes an intuitive touchscreen LCD display alongside LED indicators for real-time monitoring of battery status, charge levels, voltage, and temperature.

Safety & Compatibility

• Built-in Protection: Engineered with safeguards to prevent overcharge, over-discharge, short-circuits, and thermal or electrical stress.

• Broad Compatibility: Designed to seamlessly integrate with major solar inverter brands.

• Connectivity: Equipped with modern communication ports (CAN, RS485, and RS232) for remote monitoring and integration with energy management systems.

Key Technical Specifications

• Maximum Charge Current: 150A
• Maximum Discharge Current: 200A
• Dimensions & Weight: 866 x 450 x 230 mm; 119 kg
• Operating Temperature: 0℃ to 45℃ for charging; -20℃ to 45℃ for discharging.
